DIN 41612 Right Angle Plug Type R Connectors

Product Attributes

Model No.: DMR-120-AJX-502Brand: ANTENKplace of origin: China

Supply Ability Additional Information

Packaging: bag packing,Tube packing, reel packingProductivity: 100000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 100000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW

Packaging Delivery

Selling Units:

Bag/Bags

Package Type:

bag packing,Tube packing, reel packing

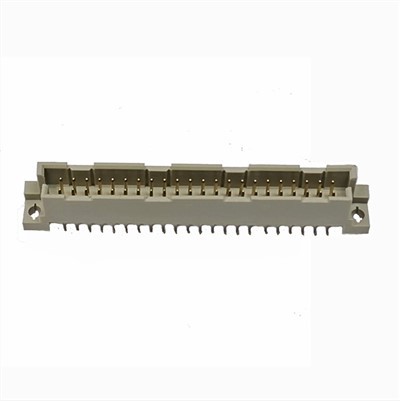

Shenzhen Antenk Electronics Co., Ltd. introduced a Din 41612 Right Angle Plug Type R Connectors 120 Positions electronic product .

DMR-120-AJX-502

SPECIFICATIONS:

1.Material And Plating:

1.1 Housing: PBT plus 5 percent PC UL94V-0

1.2 Contacts: Bronze

1.3 Contact Plating:

G=Gold Flash Plated all over,Ni under plated all over

T=Tin platd all over,Ni under plated all over

S=Gold flash plated on contact area,Tin PLATED ON

SOLDER TAIL,Ni under plated all over

2.Electronical Characteristic:

2.1 Current rating:2 AMPS

2.2 Contact resistance:20 mΩ

2.3 Insulation resistance:1000 MΩmin@500V DC

2.4 Dielectric withstanding voltage:1000V AC/minute

2.5 Operating temperature:-55 degree to plus 125 degree

FAQ

1, Can we get some samples? Any charges?

Yes, free existing labels, you need to pay shipping cost.

 2. How can we get a quote?

Contact us with specification: such as material, design, size, shape, color, quantity,  surface finishing, etc.

 3. Can you help with the design?Yes, Simply design free, special design need to pay.                                                                                          4. What's the trade term and payment term?Amount less than 1000, 100 percent  paid before production, more than 1000 can be negotiated!

T/T, Western Union, PAYPAL etc.
